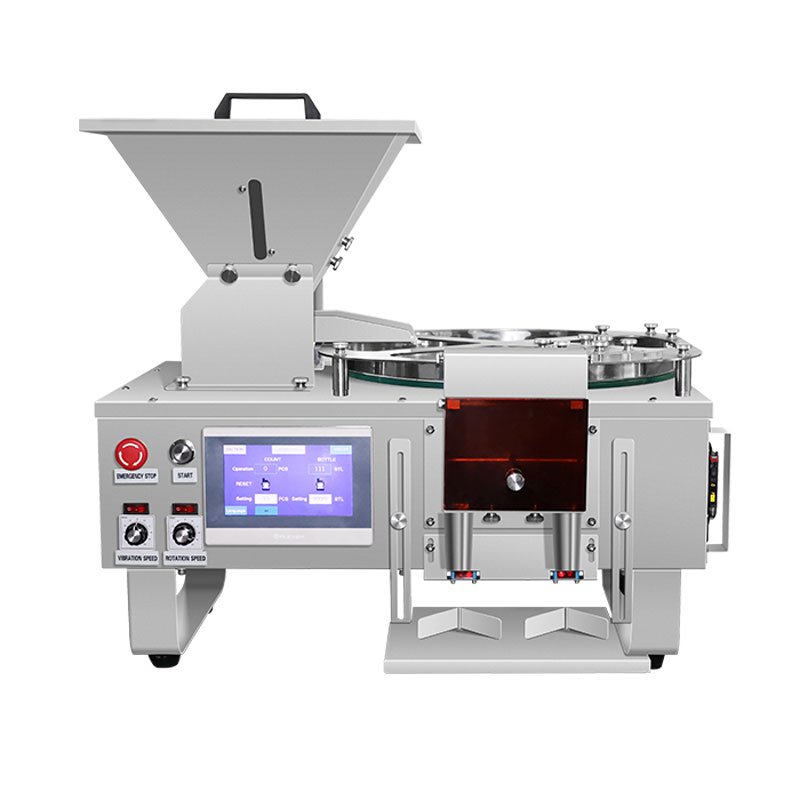

Semi Automatic Capsule Counter
Semi Automatic Capsule Counter
A semi-automatic electronic counting machine that integrates vibrating feeding, stepless oscillator speed regulation, touch-screen PLC intelligent control, and optical fiber sensor head counting into a compact, GMP-compliant desktop unit. Its dual-outlet design enables single-operator two-hand operation, effectively doubling fill capacity. An infrared light-curtain system with automatic brightness compensation eliminates manual adjustment and greatly improves counting accuracy. A ‘no-bottle, no-fill’ function prevents material waste.
Features:
1. Dual-outlet design delivers throughput close to double that of single-outlet machines.
2. Keyence fiber-optic counting heads achieve ±0.3% accuracy.
3. Automatic light compensation and ‘no-bottle, no-fill’ reduce operator training burden.
4. Compact quasi-desktop design suitable for small-to-medium batch production and R&D.
5. Full stainless-steel body and tempered-glass turntable satisfy GMP audit requirements.
Technical Data:
| Model | 2BS-H | 4BS-H |
| Capacity (pcs/hr) | 36000-120000 | 72000-180000 |
| Application | hard capsules, soft capsules, tablets, pills | |
| Control System | touch screen | |
| Counting Method | IR detection | |
| Material Size | Capsules: 00#-5# Tablet diameter: 5-25mm |
|
| Bottles Size | Max. Diameter ≤65mm Height ≤ 165mm | |
| Count Error | ±0.3% | |
| Voltage Power | Custom-made according to the customer’s request | |
Applications:
1. Tablets (standard and special-shaped).
2. Hard capsules (000#–5#).
3. Soft capsules (transparent and opaque).
4. Pills.
