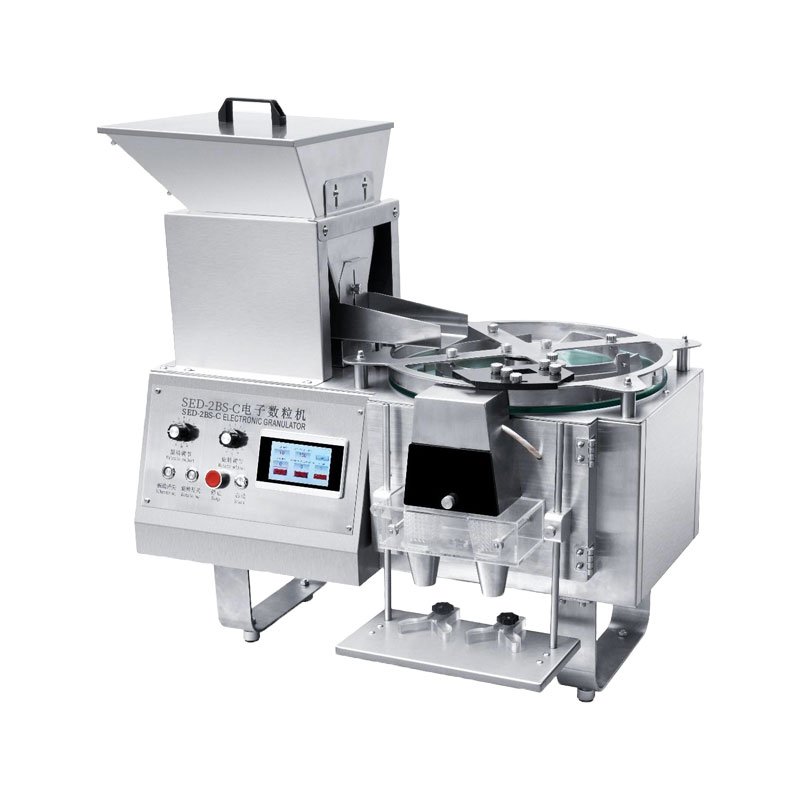

Semi Automatic Capsule Counter
Semi Automatic Capsule Counter
The machine uses high-dust-resistant photoelectric counting technology. A vibratory discharge system disperses materials via friction and centrifugal force, guiding them through a photoelectric counting channel formed by intelligent optical-fiber sensors and amplifiers, which detect and count each particle as it passes. The PLC touch-screen controller accumulates the count and triggers the discharge gate when the preset quantity is reached.
Features:
1. Precision design and outstanding quality.
2. Simple operation with intuitive touch-screen interface.
3. Easy maintenance with tool-free disassembly.
4. Dust-collection system supports high-powder-dust working environments.
5. GMP-compliant construction suitable for regulatory audits.
Technical Data:
| Model | 1BS-C | 2BS-C | 4BS-C |
| Capacity (pcs/min) | 200-800 | 1000-1800 | 2000-3500 |
| Scope of Application | Capsules, tablets, pills (3-12mm) | Capsules, tablets, pills (2-25mm) | Capsules, tablets, pills (2-25mm) |
| Voltage | 110V-220V 50-60Hz | 110V-220V 50-60Hz | 110V-220V 50-60Hz |
| Power | Custom-made according to the customer’s request | ||
| Weight (kg) | 20 | 85 | 85 |
| Dimension (mm) | 4000*3700*5800 | 9000*6600*7600 | 9500*9000*7000 |
Applications:
1. Tablets (standard and special-shaped).
2. Hard capsules.
3. Soft capsules (transparent and opaque).
4. Pills.
5. Candies.
6. Grain seeds.
7. Other solid particles 3–20 mm.
