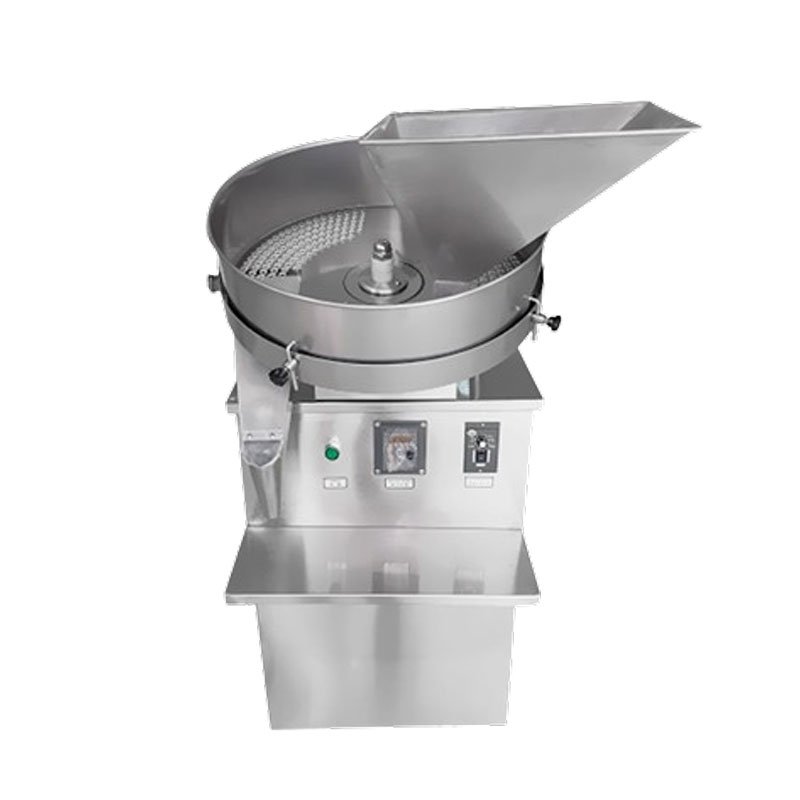

Semi Automatic Pill Counter
Semi Automatic Pill Counter
The machine uses an eccentric sieve-vibration mechanism with ultra-quiet flexible structure, allowing stepless adjustment of vibration frequency. The main unit is driven by a variable-frequency motor with soft-start for smooth operation. Tablets or capsules are shaken through a 100/200-hole counting board so exactly the desired quantity per board is dispensed into each container.
Features:
1. Eccentric sieve-vibration head with stepless vibration-frequency adjustment for gentle product handling.
2. Variable-frequency motor drive with soft-start for smooth, adjustable operation speed.
3. 100/200-hole counting board; count range 1–200 units per cycle.
4. Accurate counting, simple operation, easy maintenance.
5. Suitable for tablets, capsules, granules, and similar solid dosage forms.
Technical Data:
| Model | 100MK-S | 200MK-S |
| Application | tablets, pills, capsules | |
| Capacity (pcs/hr) | 600-120000 | 600-600000 |
| Power Supply | Custom-made according to the customer’s request | |
| Power Consumption (kW) |
0.5 | 0.55 |
| Mole Holes | 100 | 200 |
| Package Weight (kg) | 50 | 150 |
| Package Size (L*W*H mm) |
450*450*800 | 550*700*1400 |
Applications:
1. Tablets.
2. Capsules.
3. Granules.
4. Pills.
5. Food items (candy, nuts, etc).
