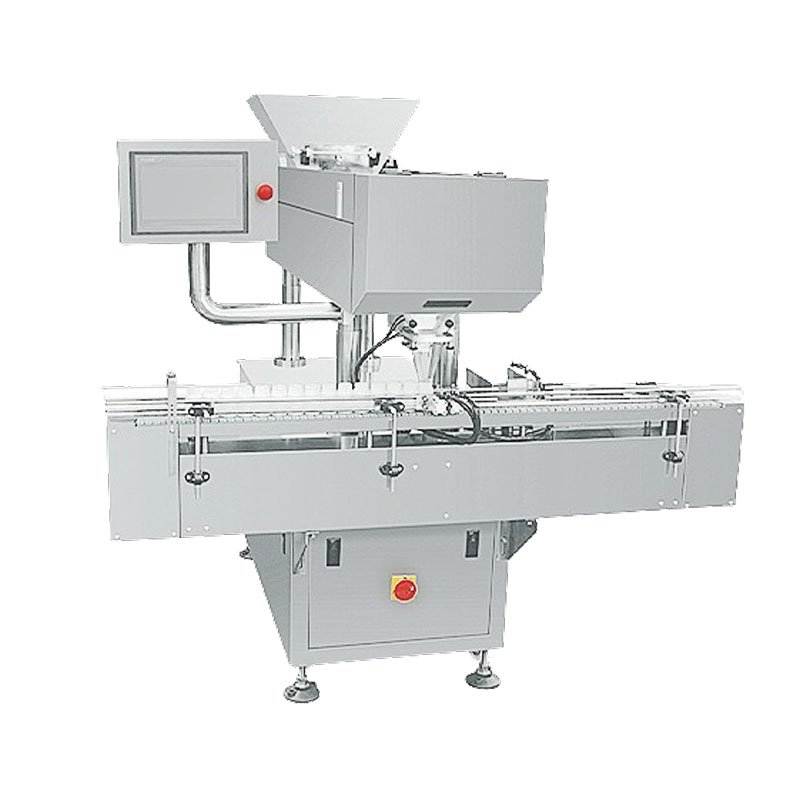

Electronic Pill Counter Machine
Electronic Pill Counter Machine
Visual imaging electronic counting machine that integrates mechanical, electrical, and pneumatic systems. It uses a line-scan CCD camera and high-speed ARM processor with embedded SCADA software for precise counting and bottling of tablets and capsules.
Features:
1. Visual imaging electronic counting (vision system, not simple photoelectric).
2. Line-scan CCD camera (Hikvision custom, using Toshiba image sensor).
3. High-speed ARM processor.
4. Embedded SCADA/configuration software.
5. Electromagnetic vibration feed principle.
6. Closed-loop control technology.
7. High-pressure dust-removal function.
8. Modular small-gate cutting device.
9. Integrated photoelectric counting unit.
10. Automatic constant-voltage power system.
11. Compressed air pressure monitoring.
Technical Data:
| Model | 8S-S |
| Capacity (bottles/hr) | 1200-3600 |
| Application | Tablets dia. ≤22mm Capsule size #00-#5 |
| Counting Accuracy | 99.99% |
| Filling Quantity per Bottle | 1-9999 |
| Bottle Mouth Size (mm) | Dia. 20-100 |
| Bottle Specification (ml) | 15-300 |
| Bottle Height (mm) | Max. 220 |
| Voltage | 220V AC50/60Hz |
| Power | Custom-made according to the customer’s request |
| Air Pressure (MPa) | 0.5 |
| Air Supply (m³/hr) | 0.8 |
| Hopper Volume (L) | 30 |
| Overall Dimension (L*W*H mm) |
1600*1600*1600 |
| Weight (kg) | 450 |
Applications:
1. Tablets.
2. Capsules.
