Electronic Pill Counter Machine
Electronic Pill Counter Machine

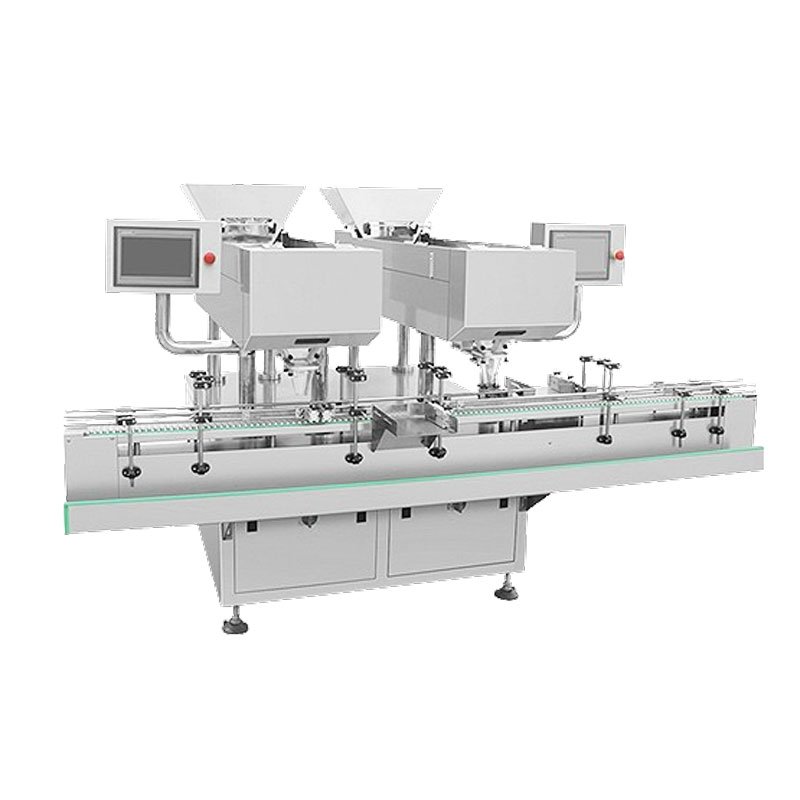

Full-automatic 16-channel electronic counting machine for counting and bottling of hard capsules (000-5#), softgels, plain tablets, special-shaped tablets, sugar-coated tablets (5.5-22mm), and round pills (diameter 20mm max). Throughput: 10-70 bottles/min (typical 40 bottles/min). GMP-compliant.
Features:
1. 16-channel vibration uniform feeding.
2. Anti-high-dust photoelectric sensing technology.
3. Photoelectric sensor automatic counting.
4. No-bottle self-diagnostic fault detection (auto stop).
5. Intelligent HMI design with parameter storage.
Technical Data:
| Model | 16S-S |
| Capacity (bottles/hr) | 1,200-9,600 |
| Counting Accuracy | 99.99% |
| Filling Quantity per Bottle | 1-9999 |
| Applicable Material | Tablet: max. Φ22mm Capsule: #00-#5 |
| Bottle Mouth Size (mm) | Φ20-100 |
| Bottle Specification (ml) | 15-300 |
| Max. Bottle Height (mm) | 220 |
| Voltage | 220V AC50/60Hz |
| Power | Custom-made according to the customer’s request |
| Air Pressure (MPa) | 0.4 |
| Air Supply (m³/hr) | 0.5 |
| Hopper Volume (L) | 30 |
| Overall Dimension (L*W*H mm) |
2600*1600*1600 |
| Net Weight (kg) | 780 |
Applications:
1. Tablets.
2. Capsules.
3. Softgels.
4. Pills.
Innoval Pharma
Product Categories
Contact Us
Related Product

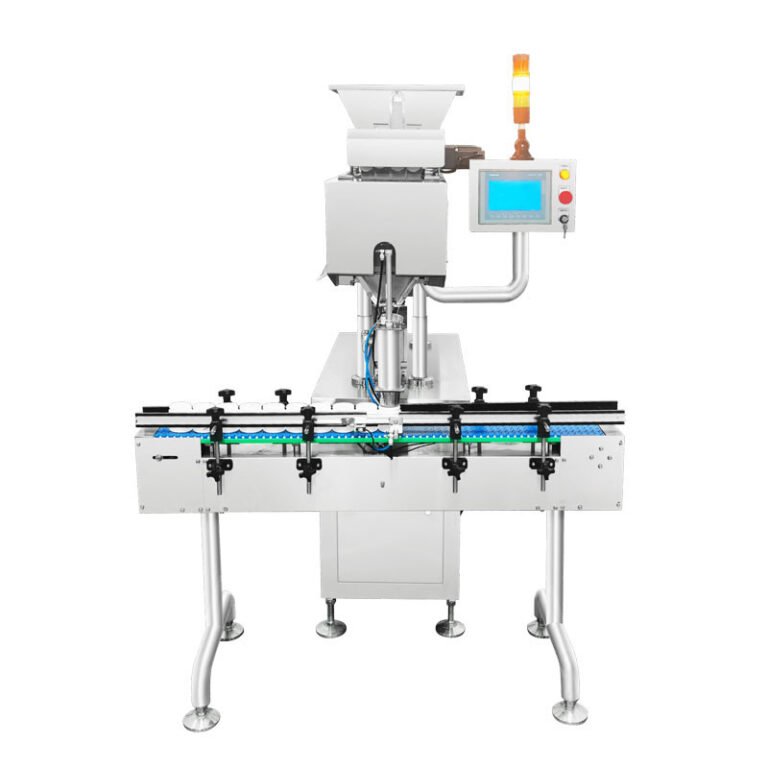

Fully automatic 4-channel electronic counting machine purpose-built for nicotine pouches (NRT pouches)...
