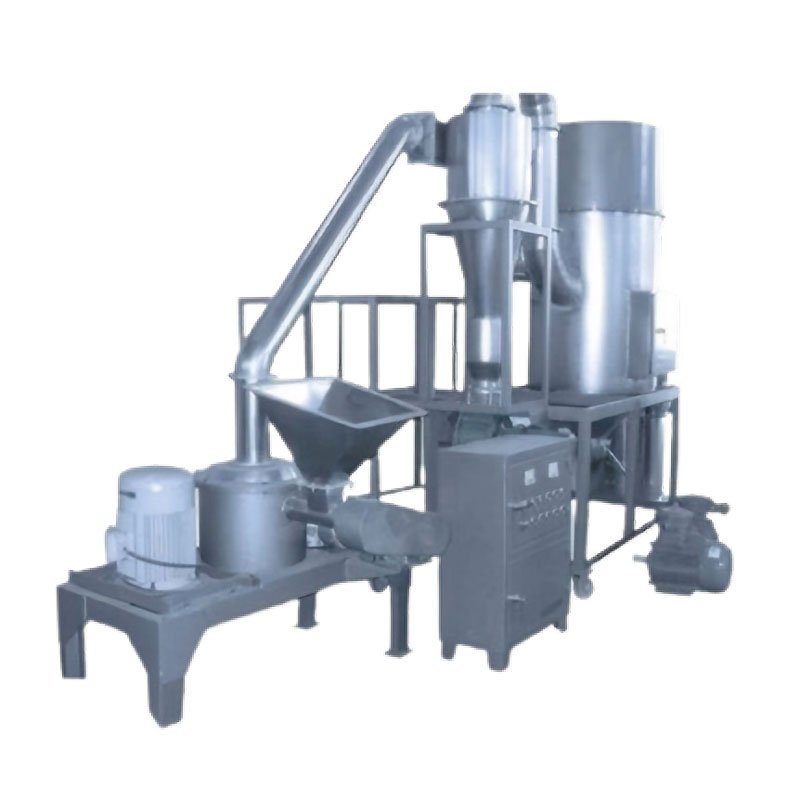

Hammer Mill Grinder
Hammer Mill Grinder
The Hammer Grinder is Used to grind big-size raw materials into fine powder; meets GMP standard. Compact structure, easy operation, easy cleaning, attractive appearance, small footprint. Widely applied in pharmaceutical, chemical, foodstuff, powder metallurgy, cosmetic and dyeing industries.
Features:
1. High pulverizing efficiency and fine powder output.
2. Manufactured to GMP standards.
3. Easy to disassemble and wash, facilitating cleaning and material changeovers.
4. Widely applicable across various industries (pharmaceuticals, food, chemicals, and materials).
Technical Data:
| Model | 150GFS-H | 300GFS-H | 500GFS-H |
| Capacity (kg/hr) |
50-150 | 100-300 | 100-500 |
| Fineness | 20-120 | 20-120 | 20-120 |
| Motor Power (kW) | Custom-made according to the customer’s request | ||
| Spindle Speed (rpm) |
2350-4360 | 1000-2400-4400 | 1000-2400-4400 |
| Overall Size (mm) | 1050*600*1600 | 1100*860*1520 | 1280*950*1600 |
| Weight (kg) | 150 | 250 | 350 |
Applications:
1. Crushing of Chinese medicine, pharmaceutical raw materials.
2. Food and cosmetic raw material grinding.
3. Powder metallurgy and dye grinding.
