Medicinal Pulverizer Grinder

Name: Medicinal Pulverizer Grinder - Innoval Pharma
SKU: FLFS-U

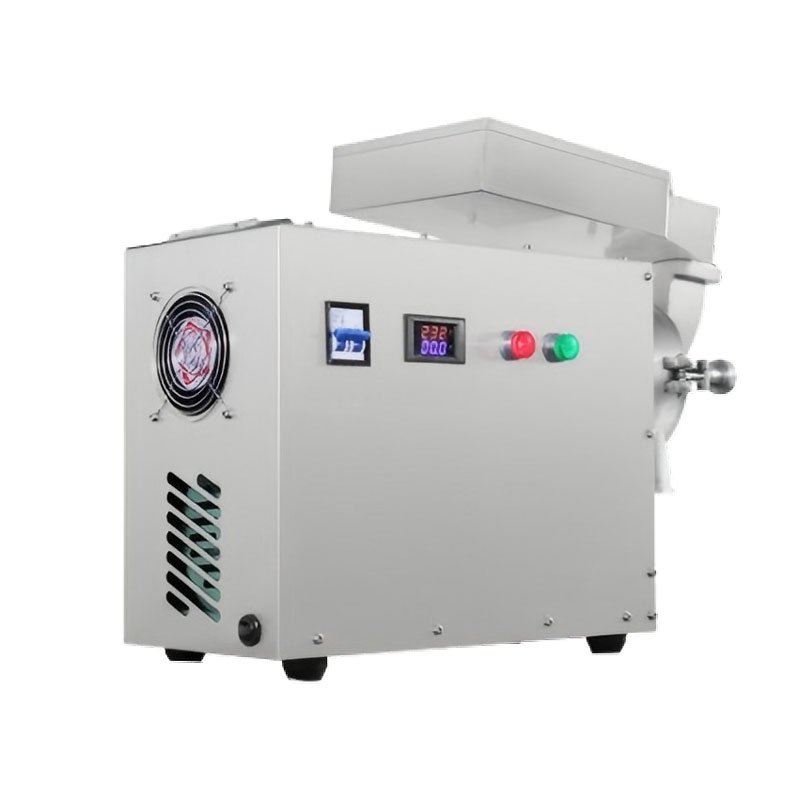

Medicinal Pulverizer Grinder

SKU FLFS-U Category Pulverizer

It is a continuous classifier-type pulverizer for quickly pulverizing soft and hard medicinal herbs and other materials, including ganoderma lucidum, American ginseng, dendrobium, panax ginseng, sanqi, gastrodia, pearl, ores, grains, maca, dry roots, stems, leaves, fruits and minerals (oily, wet or sticky materials excluded). A two-chamber design combines coarse and fine pulverization in one pass, all wetted parts in GMP-grade stainless steel.

Features:

1. Dual-chamber classifier pulverizer — coarse and fine grinding in one machine.

2. Output fineness 60–180 mesh in a single pass without re-screening.

3. Continuous feeding for high efficiency and throughput.

4. Adjustable output fineness via interchangeable screen mesh.

5. Stainless steel construction compliant with GMP pharmaceutical standards.

6. Micro-switch safety interlock on the crushing chamber cover.

7. Built-in thermal relay — auto-shutdown on overload, restartable after 1–2 min cooling.

8. Low residue and low material loss; high extraction yield.

Technical Data:

Model	40FLFS-U
Capacity (kg/hr)	5-40
Main Speed (r/min)	4800
Grain size (mesh)	60-180
Total Power (kW)	2.5
Weight (kg)	50kg
*Dimension (LWH mm)*	700250500

Applications:

1. Pulverizing Chinese medicinal herbs (ganoderma, American ginseng, dendrobium, panax ginseng, sanqi, gastrodia, etc.).
2. Crushing dry roots, stems, leaves, fruits and minerals.
3. Processing pearl, ores and grains.
4. Sample / lab pulverization.
5. Not suitable for oily, wet or sticky materials.
6. Feed material moisture content must be ≤13%.
