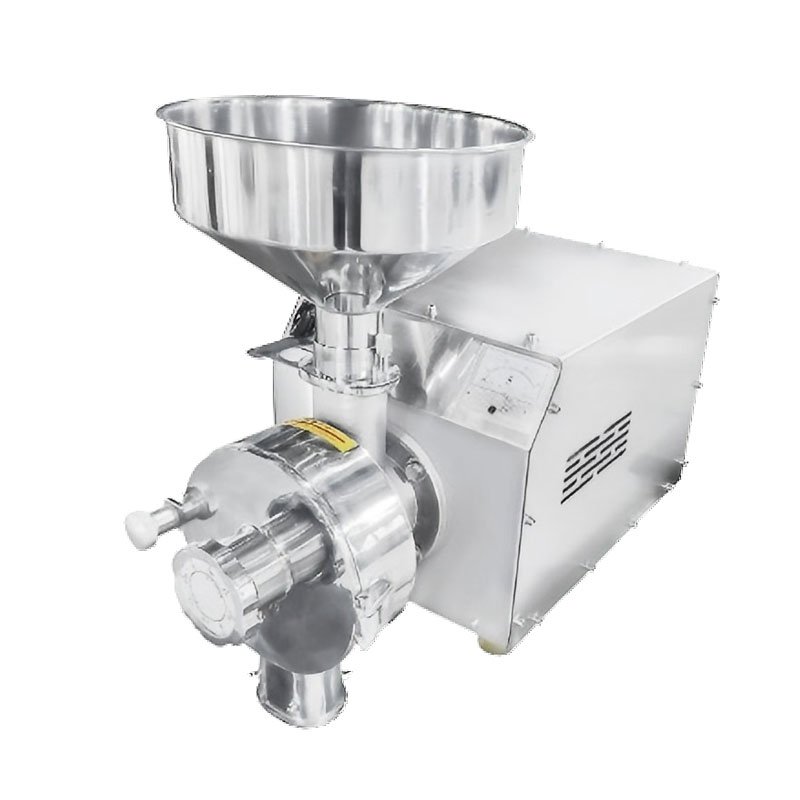

Coarse Crusher

Name: Coarse Crusher - Innoval Pharma
SKU: CSJ-D

Coarse Crusher

SKU CSJ-D Category Pulverizer

The Coarse Crusher – Horizontal-structure coarse crusher: material enters via the hopper into the chamber where the rotor knives impact and shear against fixed knives; centrifugal force pushes the material to the outlet. Designed to GMP standards, full stainless-steel construction. Simple structure, easy cleaning, low noise. Not limited by material viscosity, hardness, softness or fibre; suitable for plastics, steel wire, hard/soft/fibrous materials. Can serve as pre-crusher for ultra-fine pulverizers.

Features:

1. Horizontal pulverizing structure.

2. Designed per GMP standard.

3. Full stainless-steel construction.

4. Simple structure, easy cleaning.

5. Low noise.

6. Not limited by material viscosity, hardness, softness or fibre.

7. Can serve as pre-crusher for ultra-fine pulverizers.

Technical Data:

Model	50CSJ-D	200CSJ-D
Capacity (kg/hr)	20-40	50-200
Power	Custom-made according to the customer’s request
Rotating Speed (rpm)	1420	/
Mesh	20-80	/
Dimension (mm)	280600410	6505001100
Weight (kg)	45	180

Applications:

1. Pharmaceutical raw material coarse crushing.
2. Food coarse crushing.
3. Chemical material coarse crushing.
4. Metallurgy material coarse crushing.
5. Construction material coarse crushing.
6. Plastic / steel-wire pulverizing.
7. Pre-crushing for ultra-fine pulverizers.
