Turbine Pulverizer Mill
Turbine Pulverizer Mill

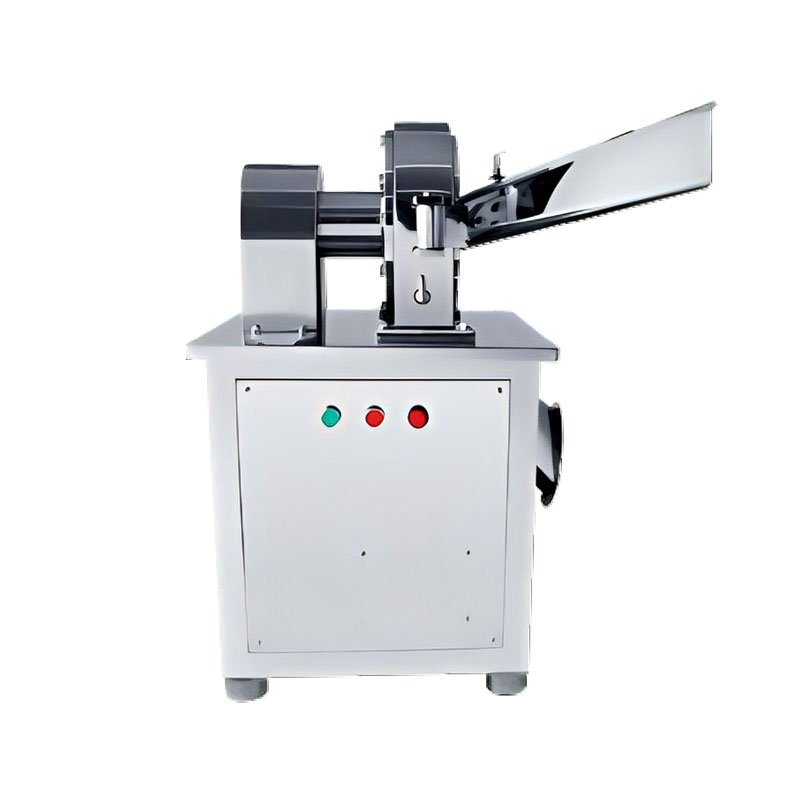

500GNF-G High-Energy Pulverizer for grinding dry, hard, brittle materials. Combined air- and water-cooling for high throughput; supports continuous feeding, optional negative-pressure feeder and dust-removal/cyclone/pulse-jet systems. Not suitable for flammable/explosive, metal, high-moisture, high-oil, or sticky materials.
Features:
1. Pure copper motor — sustained heavy-duty performance.
2. Air + water cooling for high throughput.
3. All-stainless GMP-compliant construction.
4. Multiple dust-collection options to suit customer requirements.
Technical Data:
| Model | 300GNF-G | 500GNF-G |
| Capacity (kg/hr) | 50-300 | 80-500 |
| Feeding Granularity | 12 | 12 |
| Spindle Rotation Speed (rpm) |
4600 | 4200 |
| Power | Custom-made according to the customer’s request | |
| Dimensions (mm) | 860*570*1060 | 890*620*1130 |
| Weight (kg) | 164 | 210 |
Applications:
1. Pulverizing dry / hard / brittle solids.
2. Pharmaceutical raw material milling.
3. Chemical and food powder grinding.
4. Low-sugar, low-oil material grinding.
