Industrial Pulverizer Machine
Industrial Pulverizer Machine

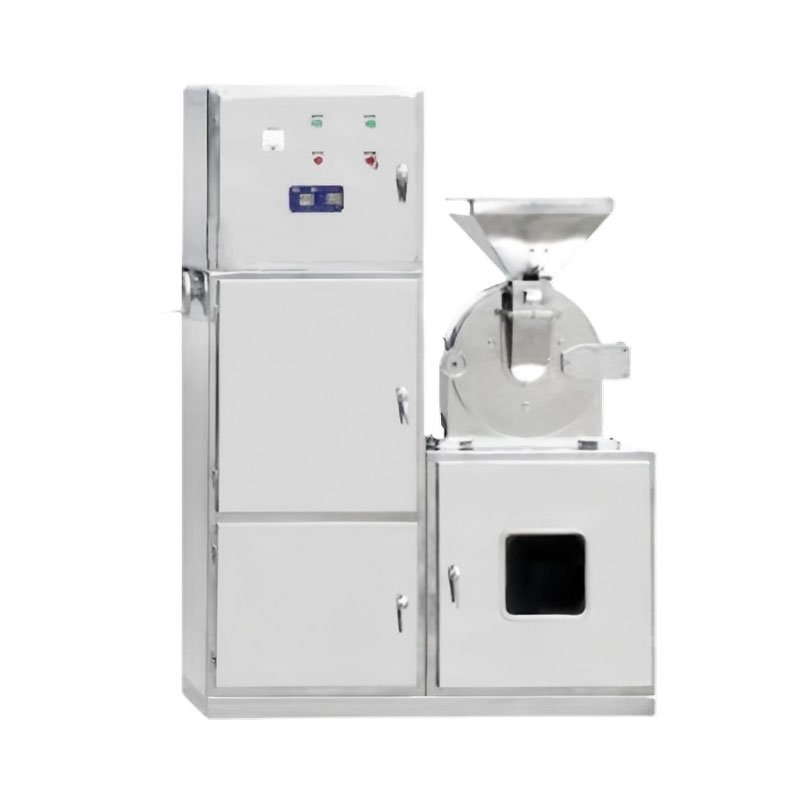

The Universal Crusher / Pulverizer (with simple dust collector) is a stainless-steel toothed-disk pulverizer for low-electrostatic and high-temperature-resistant materials such as chemicals, Chinese herbs, food, spices, resin powders and powder coatings. Horizontal automatic locking design.
Features:
1. GMP all-stainless-steel design with zero dust escape — safe for pharmaceutical and food production.
2. Wide fineness range configurable by screen swap.
3. High throughput with relatively compact footprint.
4. Self-cooling airflow protects heat-sensitive materials and prolongs blade life.
5. Integrated dust recovery improves material utilization (recovers fines).
6. Quick changeover between screens — same machine handles many product fineness specs.
Technical Data:
| Model | 18FS-B | 20FS-B | 150FS-B | 300FS-B | 800FS-B | 1200FS-B | 1500FS-B | 2500FS-B | 3000FS-B |
| Capacity (kg/hr) |
10-30 | 10-20 | 60-150 | 100-300 | 160-800 | 180-1200 | 200-1500 | 500-2500 | 600-3000 |
| Spindle Speed (r/min) |
5800 | 5300 | 5300 | 4500 | 3800 | 3300 | 2600 | 2000 | 1600 |
| Feed Size (mm) |
10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 |
| Pulverizing Size (mesh) |
20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Pulverizing Motor (kW) |
2.2 | 2.2 | 4 | 7.5 | 11 | 15 | 22 | 37 | 45 |
| Dimensions (mm) |
500*600*1100 | / | 1100*600*1650 | 1300*700*1850 | 1350*700*1920 | 1500*780*2000 | 2200*980*2000 | 2200*1100*2400 | 2000*1300*1700 |
Applications:
1. Pulverization of Chinese medicine herbs and dried plant materials.
2. Pharmaceutical raw material milling.
3. Food and spice fine grinding.
4. Resin powder pulverization.
5. Powder coating fine grinding.
6. General chemical raw material crushing.
