Horizontal Premade Pouch Bagging Machine
Horizontal Premade Pouch Bagging Machine

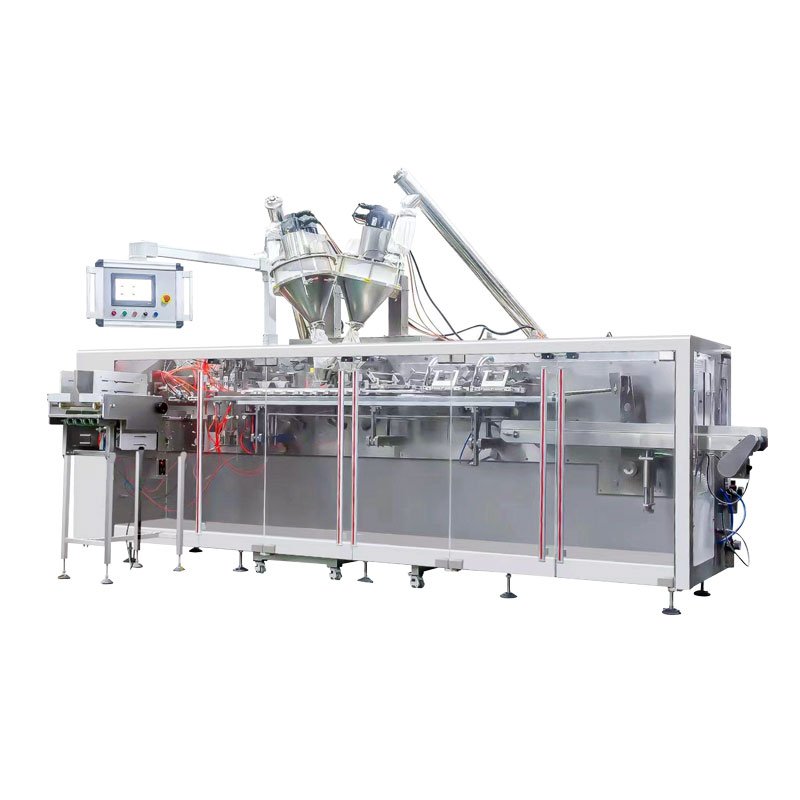

The GD-F series is an automated premade pouch packaging system that utilizes a horizontal bagging configuration paired with a dual-head spiral servo filling mechanism, delivering precise and efficient product dosing. It accommodates granules, powders, liquids, pastes, and solid pieces in various pouch formats. A high-sensitivity photoelectric sensor detects bag opening to prevent empty or jammed pouch failures. The stainless steel frame meets food-grade hygiene standards. Servo-driven automatic bag picking ensures precise grabbing across multiple pouch types. Dual-station unloading operates alternately for seamless transitions and enhanced speed. The servo motion control system achieves multi-axis coordination with response times under 1ms. An HMI interface supports recipe storage and fault self-diagnosis.
Features:
1. A high-sensitivity photoelectric sensor performs bag opening detection, avoiding empty bags and bag jam failures throughout the packaging process.
2. The stainless steel frame complies with food-grade hygiene standards, offering corrosion resistance and easy cleaning for premade pouch packaging applications.
3. Online bag feeding supports continuous, non-stop bag filling, effectively reducing production interruptions and maximizing operational efficiency for premade pouch packaging.
4. Servo-driven automatic bag picking ensures precise grabbing and is compatible with a variety of bag types, offering flexibility for diverse premade pouch packaging requirements.
5. Multi-axis servo motion control with coordinated operation and <1ms response speed, plus a central HMI control system supporting recipe storage and fault self-diagnosis.
Technical Data:
| Model | 160GD-F | 200GD-F |
| Packing Capacity (bags/hr) | 3600-4800 | 1800-3000 |
| Pouch Size (mm) | W: 100-160 L: 120-250 |
W: 80-200 L: 80-280 |
| Max. Packaging Volume (ml) | 500 | 600 |
| Air Consumption | ≤0.6m³/min | ≤0.6m³/min |
| Accuracy | ±0.5-1.5% | ±0.5-1.5% |
| Voltage | Customizable by customers’ requirements | |
| Power (kW) | 7.5 | 5.5 |
| Dimensions (mm) | 3600*1200*1400 | 2800*1200*1400 |
| Weight (kg) | 1600 | 1600 |
Applications:
1. Food & Snack Packaging: Suitable for packaging granular, powdered, and solid food items like nuts, dried fruits, coffee, flour, and seasonings in premade pouches.
2. Pharmaceutical & Nutraceutical Products: Ideal for filling capsules, tablets, powdered supplements, and granules into stand-up or flat premade pouches for medical use.
3. Chemical & Daily Chemical Applications: Capable of packaging detergents, fertilizers, pesticides, and cosmetic powders or liquids into sealed premade pouches efficiently.
4. Multi-Industry Versatile Packaging: Widely applied across food, pharmaceutical, cosmetic, and chemical industries to fill granules, powders, liquids, and irregular shapes into various pouch formats.
