Tea Pouch Packing Machine
Tea Pouch Packing Machine

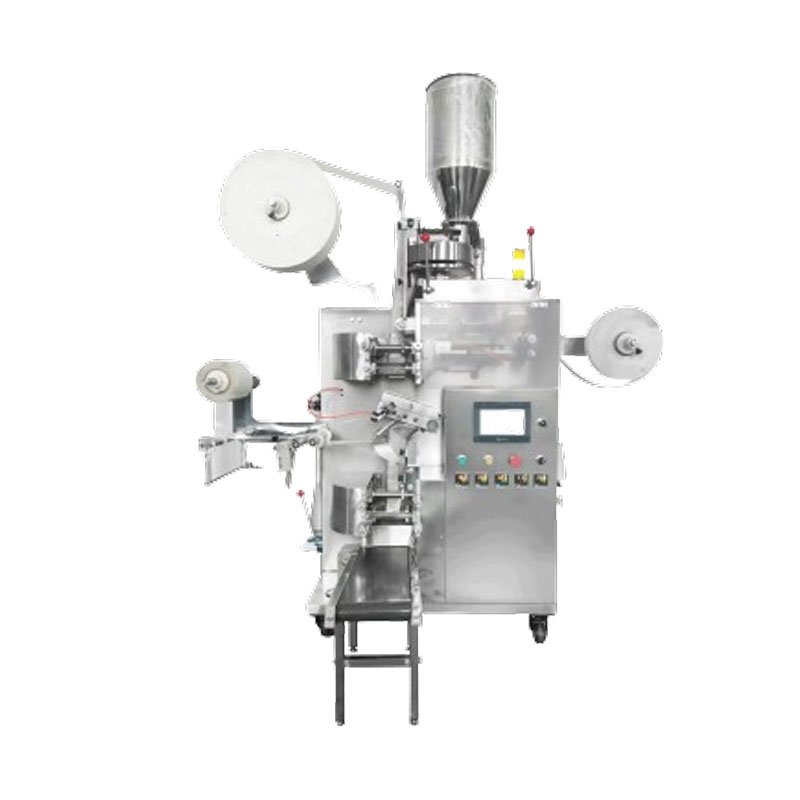

The NWCB-S is a tea pouch packaging system built for single-use sachets containing tea leaves, tea powder, and similar products. It achieves precise bag-length and seal-position alignment through accurate PID temperature regulation. A stepper motor governs pouch dimensions, while a PLC programmable control system manages operation. Constructed from SUS304 stainless steel to meet hygiene standards, it also supports optional add-ons for date coding and easy-tear features. The machine handles 1–8 g per bag at 30–45 bags per minute, producing inner bags of 100–160 mm film width and outer bags of 120–190 mm. It weighs 500 kg and measures 1050×750×1950 mm.
Features:
1. A stepper motor precisely controls packaging dimensions, ensuring accurate bag length and sealing position for consistent tea pouch production quality.
2. PID adjustable temperature control ensures consistent and reliable bag sealing, maintaining optimal heat levels throughout the tea pouch packing process.
3. The PLC programmable control system ensures dependable operation and easy parameter configuration for efficient tea pouch packing applications.
4. The machine is built with SUS304 stainless steel, fully conforming to hygiene standards and ensuring sanitary conditions for tea pouch packing.
5. Additional devices can be connected for date printing and easy-tear functionality, enhancing the versatility and convenience of tea pouch packing operations.
Technical Data:
| Model | NWCB-S |
| Sealing Form | three-side sealing |
| Filling Range (g/bag) | 1-8 |
| Packing Speed (bag/min) | 30-45 |
| Inner Bag Size (mm) | 100≤film width≤160; 50≤bag length≤75 (replacement of accessories is required to change the size) |
| Outer Bag Size (mm) | 120≤film width≤190; 80≤bag length≤110 (replacement of accessories is required to change the size) |
| Tag Size (L*W mm) | 25*25 |
| Power | Custom-made according to the customer’s request |
| Air Consumption | 15L/min 4-6kg |
| Machine Weight (kg) | 500 |
| Dimension (L*W*H mm) | 1050*750*1950 |
Applications:
1. Tea Leaf & Tea Powder Packaging: Specially designed for disposable packaging of tea leaves, tea powder, and various tea products into inner and outer bags.
2. Diverse Tea Varieties: Suitable for green tea, black tea, scented tea, herbal tea, health tea, oolong tea, and granular tea.
3. Medicinal & Herbal Tea Applications: Ideal for packaging medicinal tea, Chinese herbal tea, health care tea, and herbal granules in small sachets.
4. Pharmaceutical & Health Industry Use: Applied in pharmaceutical and healthcare industries for filling granular materials into sealed tea pouches with precision.
