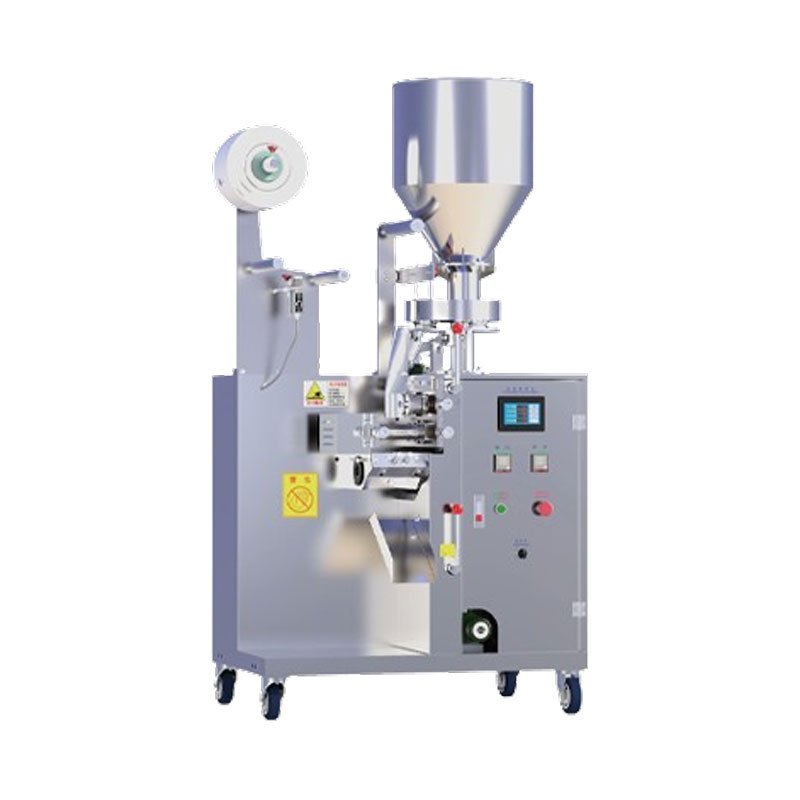

Tea Pouch Packing Machine
Tea Pouch Packing Machine
The NCB is a tea bag packaging system operated through a touchscreen interface and PLC control. It handles small granular items such as soup bags, desiccants, granules, and broken tea, making it well-suited for the instant noodle sector. The machine processes tissue paper, filter paper, and aluminized film. It automates bag forming, dosing, filling, sealing, cutting, and counting in one continuous operation. Bag length can be adjusted freely without gear replacement. Available models achieve speeds of 30–80 bags per minute, with pouch dimensions varying by model. Power supply is customizable, and unit weights range from 320 to 450 kg. The equipment is engineered for easy maintenance, reliable performance, and supported by a professional service team.
Features:
1. The machine adopts touch screen operation and PLC control, allowing bag length to be changed without replacing gears for flexible tea bag production.
2. Automatically performing bag making, measuring, filling, sealing, cutting, and counting, the machine ensures a fully integrated and efficient tea bag packaging workflow.
3. The machine is suitable for packaging small granular items including soup bags, desiccants, granules, and broken tea, offering versatile applications in the instant noodle industry.
4. Flexible bag length adjustment allows operators to easily modify packaging dimensions to accommodate different product requirements and production needs.
5. Featuring an integrated labeling and lift line system, the machine provides enhanced packaging capabilities for efficient and organized tea bag production.
Technical Data:
| Model | NCB-O | NCB-O(triangle bag) | NCB1-O |
| Packing Speed (bags/min) | 40-80 | 25-40 | 30-60(based on materials) |
| Bag Size (mm) | L: 40-110 W: 30-80 |
L: 60-80 W: 40-80 |
L: 50-80 W: 45-80 |
| Dimensions (L*W*H mm) | 900*750*1750 | 1250*1450*2110 | 900*750*1750 |
| Power | Custom-made according to the customer’s request | ||
| Weight (kg) | 320 | 450 | 350 |
| Label Size (L*W mm) | / | / | 20*28/20*25/20*20 |
Applications:
1. Food & Snack Packaging: Suitable for packaging soup bags, puffed food, snacks, candy, nuts, coffee beans, rice, and other granular food items.
2. Pharmaceutical Granule Packaging: Ideal for small-dose packaging of loose, non-sticky granular materials such as pharmaceutical granules, traditional Chinese medicine particles, and health products.
3. Chemical & Daily Chemical Products: Capable of packaging desiccants, granular detergents, seeds, plastic granules, and other chemical or industrial granular materials.
4. Tea & Herbal Products: Widely used for packaging broken tea, herbal tea, medicinal tea, and various tea products in the instant noodle and tea industries.
