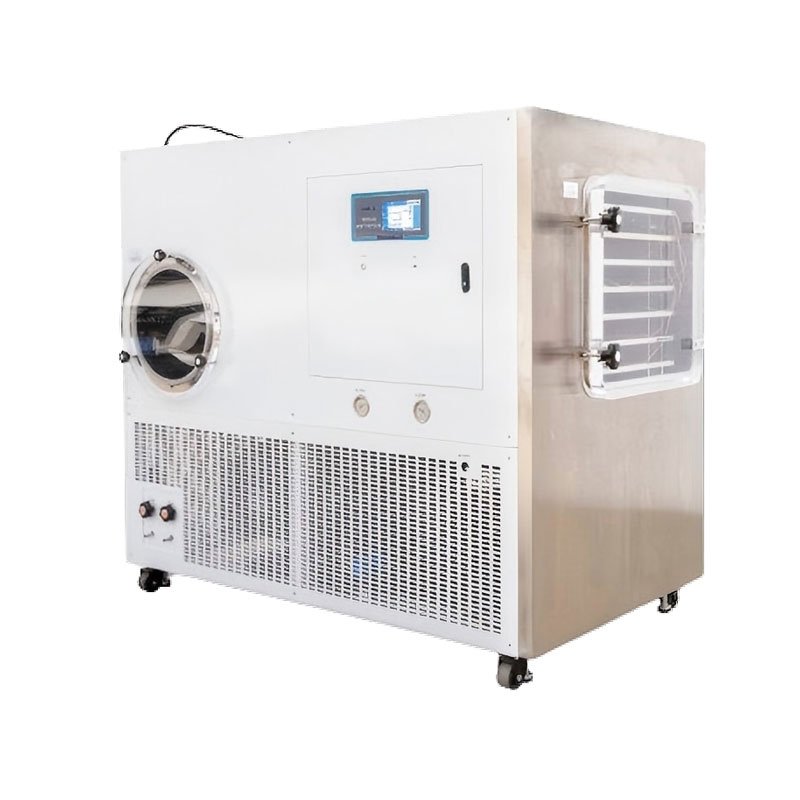

Lab Scale Vacuum Freeze Dryer
Lab Scale Vacuum Freeze Dryer
The freeze dryer features an integrated chamber-and-cold-trap design, resulting in a shorter sublimation channel that facilitates the rapid and massive sublimation of water vapor. Equipped with a high-transparency acrylic door, the unit allows for real-time observation of the entire freeze-drying process as the samples undergo changes. Operation is simple and highly automated; the entire freeze-drying cycle can be completed with the press of a single button.
Features:
1. In-situ pre-freezing and drying for simplified operation.
2. High-precision temperature control (±1°C).
3. French TECUMSEH dual-cascade refrigeration — efficient and energy-saving.
4. FD-PILOT intelligent freeze-drying control system supporting hundreds of recipes.
5. Transparent ACRYLIC chamber door for full process visibility.
6. Air-cooled design — no cooling water required.
7. Integrated one-piece structure for easy transport and installation.
Technical Data:
| Model | 0.3XDG-Z | 0.6XDG1-Z | 1XDG1-Z | 1XDG2-Z | 2.25XDG-Z |
| Drying Area (㎡) | 0.3 | 0.6 | 1 | 1.03 | 2.25 |
| Number of Shelf Layers |
4+1 | 4+1 | 4+1 | 6+1 | 5+1 |
| Layer Size (L*W mm) |
540*200 | 300*500 | 310*830 | 360*480 | 500*900 |
| Cold Trap Minimum Temperature (℃) |
≤ -45 | ≤ -40 | ≤ -55 | ≤ -75 | ≤ -70 |
| Water Catching Capacity (kg) |
≥4 | ≥8 | ≥15 | ≥20 | ≥30 |
| Power | Custom-made according to the customer’s request | ||||
| Installation Power (kW) |
2 | 2.7 | 3.2 | 6.5 | 13.5 |
| Dimension (L*W*H mm) |
510*700*670 | 700*850*1500 | 1180*740*1400 | 1170*830*1665 | 1200*2100*1700 |
| Weight (kg) | 80 | 280 | 300 | 800 | 1200 |
Applications:
1. Lyophilization of pharmaceuticals, biologics, foods, and chemical materials.
