Semi Automatic Bottle Label Applicator
Semi Automatic Bottle Label Applicator

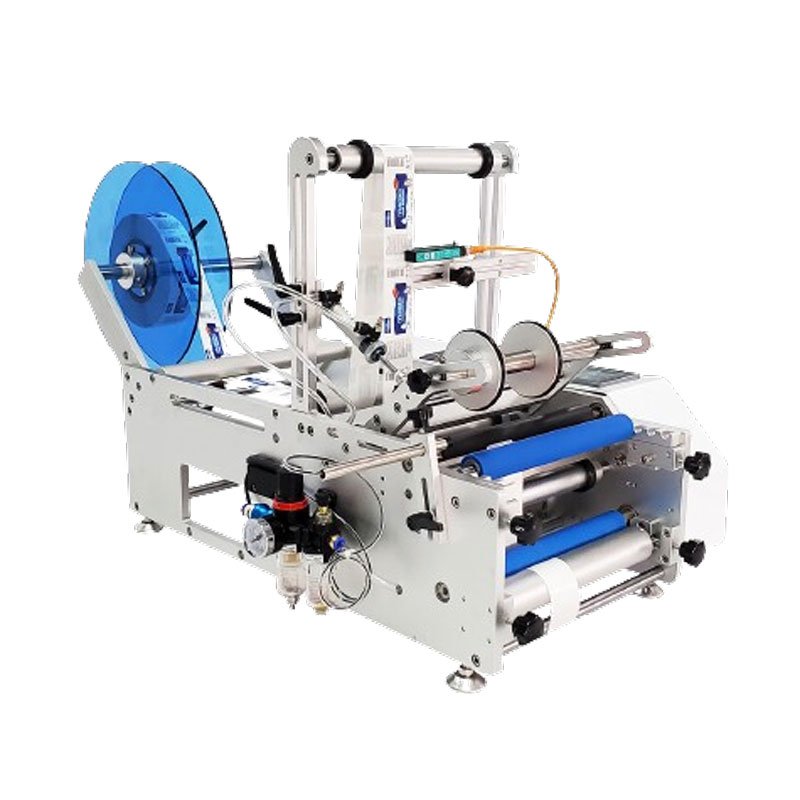

The BTB-G is a space-saving, semi-automated label applicator built for cylindrical containers with a diameter range of 10 to 150 mm. Operation is initiated either by a foot pedal or an optional automatic sensor, and the labeling cycle is finalized through pneumatic top-clamping. This unit is ideally suited for small-scale production, compounding pharmacies, and research and development laboratories. It delivers dependable, consistent performance, features easily adjustable components, and offers flexible activation options to accommodate varying operational needs.
Features:
1. PLC control system guarantees stable and repeatable performance, made of superior stainless steel and aluminum alloy materials, the pressing mechanism and product positioning bracket offer easy adjustment.
2. Equipped with a touchscreen interface for fast configuration, flexible operation via optional foot pedal or sensor-activated labeling, labeling speed: 15 to 30 bottles per minute.
3. Designed for round bottle labeling, compatible with bottle diameters of 10–150 mm.
4. Suitable for labels measuring 20–300 mm in length and 20–230 mm in width, easy maintenance and cleaning; supported by an expert service team; reliable performance and well-engineered structure.
Technical Data:
| Model Name | BTB-G |
| Labeling Speed (bottles/min) | 15-30 |
| Application | Round bottles |
| Bottle Diameter (mm) | 10～150 |
| Label Size (mm) | Length: 20-300 Width: 20-230 |
| Labeling Accuracy | ±0.5mm |
| Dimensions (L*W*H mm) |
950*560*520 |
| Power Supply | 220V/50Hz |
| Weight (kg) | 34 |
Applications:
1. Small-batch production & pilot runs — ideal for startups, pilot lines, and small-scale manufacturing requiring professional labeling.
2. Compounding pharmacies & R&D laboratories — suited for labeling medicine vials, oral liquid bottles, and customized samples in lab environments.
3. Pharmaceutical & nutraceutical packaging — applies labels to round medicine bottles, dietary supplement containers, and eye drop bottles with ±0.5mm accuracy.
4.Cosmetics & personal care products — efficiently labels round bottles for skincare, serums, shampoos, and other cosmetic containers across small production runs.
