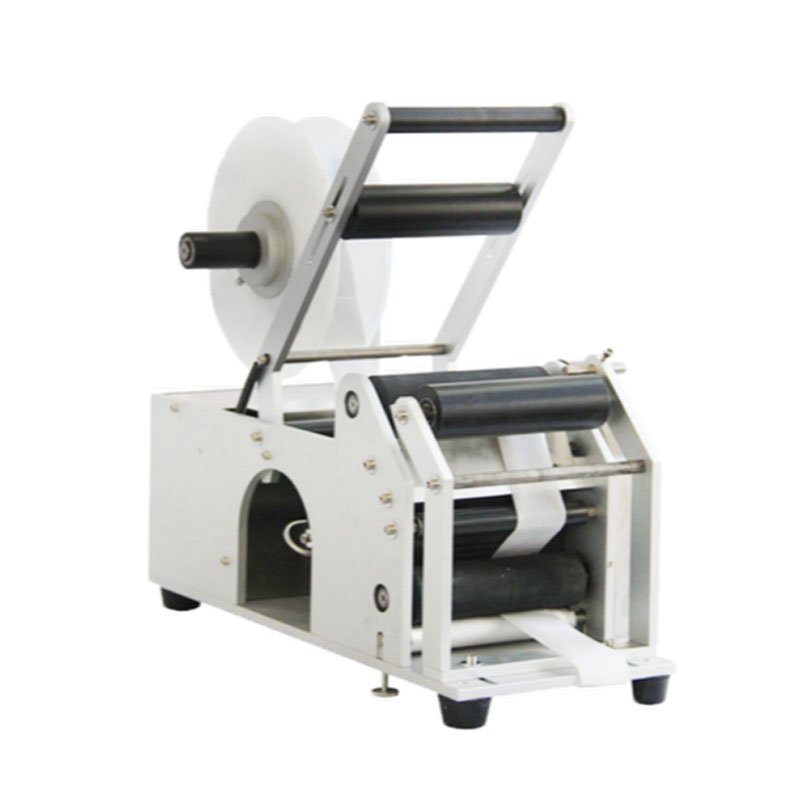

Semi Automatic Bottle Label Applicator
Semi Automatic Bottle Label Applicator
The BTB-D is a flexible semi-automatic labeling system that comes in two variants: one for cylindrical bottles and another tailored for cartons and square containers requiring corner labeling. Driven by a PLC controller and high-accuracy label sensors, it ensures dependable and precise label placement with consistent results. Its compact benchtop footprint, rapid changeover between container formats, and robust construction make it an ideal choice for small-scale production, compounding pharmacies, and R&D laboratories. The unit is designed for straightforward cleaning and maintenance and is supported by a dedicated professional service team.
Features:
1. PLC-based control for consistent and repeatable functioning, accurate label positioning ensured by precision label sensors.
2. Space-saving benchtop design suited to small-batch and R&D settings, quick adjustment for various container dimensions and shapes.
3. Designed for cylindrical products and flat-sided cartons or boxes.
4. Available in two configurations: BTB-D for round bottle labeling and BTB-D for corner labeling, labeling speed of 45 to 60 bottles per minute depending on configuration.
Technical Data:
| Model Name | BTB-D (Round Bottle Labeling) | BTB-D (Corner Labeling) |
| Labeling Speed (bottles/min) | 45 | 60 |
| Application | Round bottles | Square containers |
| Accuracy | ±1mm | |
| Bottle Size (mm) | Diameter: 15-150
Height: 30-250 |
/ |
| Label Roll Size (mm) | Outer diameter: ≤300
Inter diameter: 76 |
Outer diameter: ≤200
Inter diameter: 76 |
| Label Size (mm) | Width: 10-150
Length: 10-260 |
Width: 10-80
Length: 10-80 |
| Dimensions (L*W*H mm) |
920*450*520 | 3000*2500*2500 |
| Power Supply | Custom-made according to the customer’s request | |
| Weight (kg) | 45 | 11 |
Applications:
1. It suited for medicine vials, oral liquid bottles, ampoules, and eye drop containers.
2. Ideal for skincare serums, shampoo bottles, essential oil containers, and small taper cosmetic bottles.
3. It applies labels to sauce bottles, condiment jars, wine bottles, beverage containers, and health supplement bottles.
4. A compact benchtop solution for pilot lines, small businesses, and laboratory environments requiring professional labeling.
