Name: Automatic Round Bottle Labeling Machine - Innoval Pharma
SKU: WT

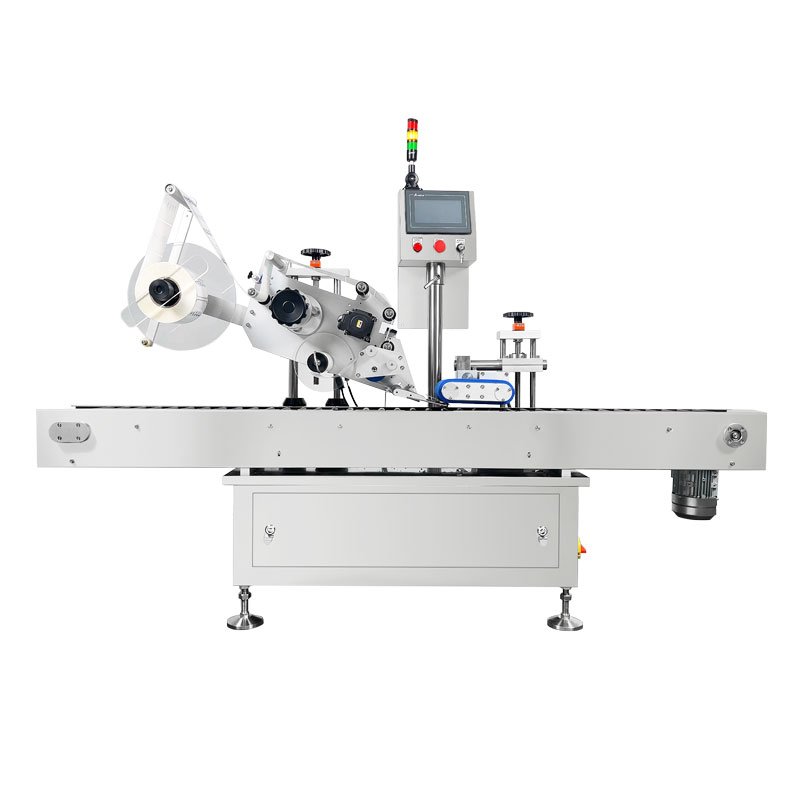

Automatic Round Bottle Labeling Machine

SKU WT Category Labeling machine

The machine WT is an automatic horizontal labeling system built for round bottles and small tapered containers measuring 25 to 100 mm in diameter. It handles full-wrap, partial, and wrap-around labeling tasks. A photoelectric sensor governs the label feed with precision, while an integrated self-correcting mechanism continuously watches for missing labels. With a throughput of 50 to 100 bottles per minute and a maximum label width of 110 mm, the machine ensures smooth, bubble-free application. Its stainless steel and aluminum construction supports durability and straightforward cleaning, and a PLC touchscreen interface provides operational control and diagnostics.

Features:

1. Equipped with photoelectric sensor control and an automatic missing-label detection and correction function。

2. Roller wrapping station guarantees smooth, bubble-free label application, tool-free fast switching between various container dimensions.

3. “No bottle, no label” feature eliminates unnecessary label waste, constructed from stainless steel and aluminum for durability and easy cleaning.

4. PLC and touchscreen HMI with built-in fault diagnostics and user interface, optional automatic bottle unscrambler for integrated inline feeding.

5. Optional hot foil coder enabling online date and batch coding, suitable for round bottles, tapered bottles, and round tubes, suitable for labels up to 110 mm in width.

Technical Data:

Model Name	WT
Application Type	Round Bottle Tapered Bottle Round Tube
Bottle Diameter (mm)	25-100
Capacity (bottles/min)	50-100
Label Size (mm)	Width ≤110
Power	Custom-made according to the customer’s request
Air Consumption (MPa)	0.6
Dimensions *(LWH mm)*	17607001550
Weight (kg)	230

Applications:

1. It is widely used for labeling small medicine bottles, oral liquid bottles, ampoules, and injection vials with high precision.

2. It efficiently labels bottled drinks, sauces, condiments, and packaged liquids, ensuring accurate positioning for product identification and compliance.

3. The machine is ideal for labeling lotion bottles, serum containers, and skincare products, delivering smooth, bubble-free application on round and tapered containers.

4. It also serves the daily chemical sector, accurately labeling detergent bottles, cleaning products, and various cylindrical containers with reliable performance.
