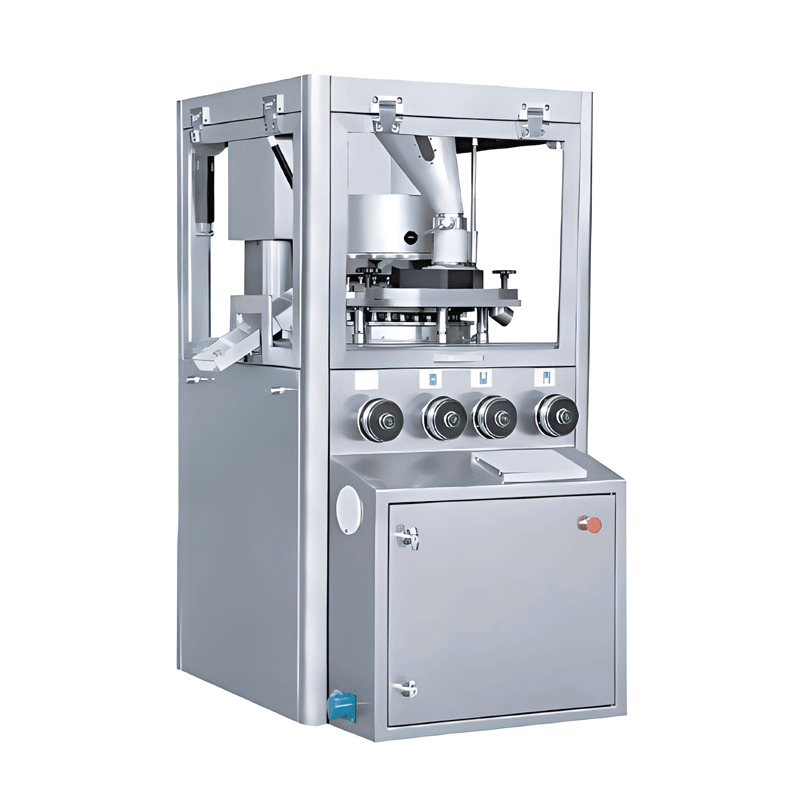

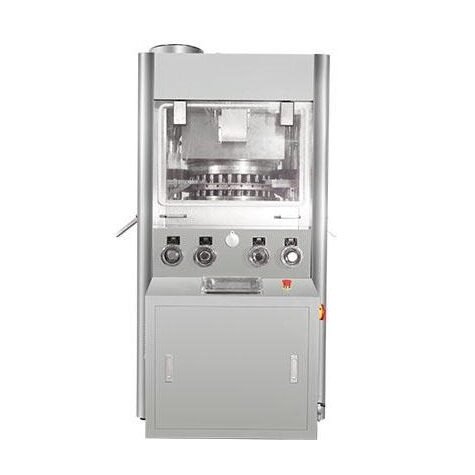

Multifunctional Automatic Rotary Tablet Pressing Equipment

Name: Multifunctional Automatic Rotary Tablet Pressing Equipment - Innoval Pharma
SKU: GY-D
Price: 9999.00 USD
Availability: InStock

Multifunctional Automatic Rotary Tablet Pressing Equipment

SKU GY-D Category Tablet Press

Variable-frequency motor + synchronous toothed belt → speed reducer → gear pair → ring gear drives the punching disc; the main motor features variable-frequency speed control, allowing for a wide and continuous range of output adjustment.
Compresses round, irregular, cartoon, and double-sided debossed tablets for pharma, chemical, food and electronics industries. Forced feeder, microprocessor control, auto pressure regulation, tablet weight control, and waste tablet rejection.

Introduction：

This is a kind of fully automatic rotary tablet pressing machine, which puts all kinds of granular or powdery materials into the holes of the dies, and then presses them into tablets with punches’ heads by a number of punches and dies evenly distributed on the rotary table according to a certain trajectory of circular lifting and lowering movements. This machine uniformly presses tablets with the upper and lower punches at the same time, which means that the air in the particles can be squeezed out of the holes, so it improves the uniformity of the tablets and reduces the cracks of the tablets. It can be used to press various raw materials into tablets for pharmaceutical, chemical, food, electronic, and other industries. Besides, the machine is equipped with a forced feeding mechanism and microcomputer control, which can automatically adjust the pressure, control the weight of tablets, and remove the waste tablets.
This machine can press all kinds of granular raw materials into round tablets, shaped tablets, carton tablets, and tablets with double-sided positioning and engravement and so on.

Features:

1. Two-stage pressure molding (independent adjustment for both pre-compression and main compression).

2. Variable-frequency motor + synchronous toothed belt + reducer + ring gear, allowing for a wide range of continuously adjustable production output.

3. Cast iron machine frame ensures stable and smooth operation.

4. Modular upper guide rail design facilitates easy disassembly, assembly, and maintenance.

5. Dual-sided lifting guide rails ensure uniform force distribution on the punches, extending their service life.

6. Novel powder-blocking mechanism ensures efficient utilization of raw materials.

7. Fully sealed compression chamber complies with GMP standards.

8. Automatic feeding system utilizing a vacuum feeder.

9. Features both automatic batch rejection and manual switching modes.

10. Capable of compressing round tablets, irregular-shaped tablets, carton-shaped tablets, and double-sided engraved/oriented tablets.

Technical Data:

Model	SED-290- 10GY-D	SED-290- 15GY-D	SED-370- 26GY-D	SED-600- 35GY-D	SED-600- 45GY-D	SED-600- 55GY-D	SED-600- 57GY-D	SED-660- 45GY-D	SED-660- 55GY-D	SED-660- 75GY-D
No. of Stations	10	15	26	35	45	55	57	45	55	75
Max. Pressure (kN)	80	100	100	80	80	80	80	100	100	100
Max. Tablet Diameter (mm)	25	25	25	25	17	11	11	25	19	16
Max. Tablets output (pcs/ hour)	43,000	65,000	135,000	189,000	243,000	297,000	307,800	405,000	495,000	675,000
Power	Custom-made according to the customer’s request
Machine Dimensions (mm)	11009501610	11009501610	12009501850	117012901900	117012901900	117012901900	117012901900	Host 170413801926 Control Cabinet 7505501750	Host 170413801926 Control Cabinet 7505501750	Host 170413801926 Control Cabinet 7505501750
Machine Net Weight (kg)	675	675	1700	2800	2800	2800	2800	4220	4220	4220

Applications:

1. Tablet Compression.
2. Round Tablets / Shaped Tablets / Cartoon-Shaped Tablets / Double-Sided Engraved Tablets.

Advantages:

This series of products is characterized by high manufacturing precision, advanced automation level, fast production speed, stable and reliable use, and low working noise. It can improve the production quality of drugs and the environment, reduce labor intensity and the loss of raw materials, and lower the production costs. It is the ideal equipment for pharmaceutical factories to implement production technology reform and new projects, and meet the requirements of GMP.
