Rotary Tablet Press Machine
Rotary Tablet Press Machine

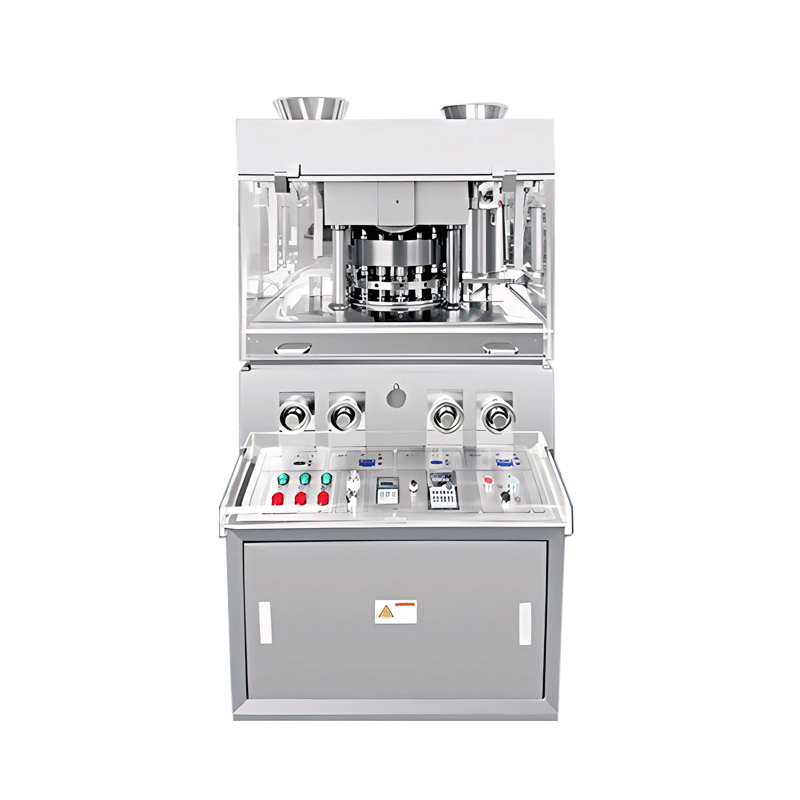

The Model Y-B Rotary Tablet Press is a single-press, continuous automatic tablet machine suitable for compressing a wide variety of tablets, including both standard and irregularly shaped forms. The entire machine is constructed from GMP-compliant 304 stainless steel and is equipped with a safety sealing and dust-proofing system. Furthermore, the equipment features high-visibility isolation doors designed to effectively prevent cross-contamination. All components are engineered with an easy-to-dismantle structure, facilitating rapid maintenance and servicing.
Features:
1. GMP-compliant.
2. All 304 stainless steel construction.
3. Reliable safety sealing and dust-proof system.
4. High-visibility isolation door (plexiglass) prevents cross-contamination.
5. Quick-release parts for fast maintenance.
6. Hardened pressure wheels HRC60-62 / track guides HRC58-62 for long life.
7. Tin-bronze worm gear with surface hardness HRC45-48.
8. Both round and irregularly shaped tablet capability.
Technical Data:
| Model | SED-200- 7Y-B |
SED-226- 8Y-B |
SED-330- 15Y-B |
SED-330- 17Y-B |
SED-420- 15Y-B |
SED-420- 19Y-B |
SED-420- 21Y-B |
SED-420- 25Y-B |
SED-420- 27Y-B |
SED-420- 29Y-B |
SED-420- 31Y-B |
SED-420- 33Y-B |
SED-420- 35Y-B |
SED-420- 37Y-B |
SED-420- 41Y-B |
SED420- 45Y-B |
SED-445- 27Y-B |
SED-680- 23Y-B |
| No. Of Dies | 7 | 8 | 15 | 17 | 15 | 19 | 21 | 25 | 27 | 29 | 31 | 33 | 35 | 37 | 41 | 45 | 27 | 23 |
| Max. Pressure (kN) |
60 | 80 | 80 | 60 | 130 | 130 | 100 | 100 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 100 | 100 |
| Max. Dia.of Tablet (mm) |
20 | 22 | 25 | 20 | 50 | 40 | 40 | 25 | 25 | 24 | 22 | 13 | 13 | 13 | 13 | 13 | 35 | 40 |
| Production Capacity (pcs/hr) |
6,000-10,000 | 14,400 | 15,000-40,000 | 37,000 | 27,000 | two color 17,000 single color 34,000 |
51,000 | 80,000 | 100,000-110,000 | 125,000 | 135,000 | 130,000 | 150,000 | 160,000 | 170,000 | 180,000-190,000 | 81,000 | 23,000 |
| Motor (kW) | 2.2 | 2.2 | 4 | 2.2 | 7.5 | 7.5 | 7.5 | 5.5 | 3-5.5 | 4 | 3-5.5 | 4 | 4 | 4 | 4 | 4 | 7.5 | 7.5 |
| Overall Size (mm) |
480*630*1100 | 750*660*1620 | 615*890*1415 | 615*890*1415 | 1300*1500*1850 | 1300*1500*1850 | 1500*1300*1650 | 1230* 950*1670 | 1230*950*1670 | 1230*950*1670 | 1230*950*1670 | 1240*980*1690 | 1230*950*1670 | 1230*950*1670 | 1230*950*1670 | 950*1230*1670 | 1000*1250*1900 | 1000*1250*1900 |
| Net Weight (kg) |
300 | 780 | 850 | 1000 | 2100 | 2000 | 1850 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1850 | 3200 | 3200 |
Applications:
1. Round tablet pressing.
2. Irregular/shaped tablet pressing.
3. Compression of granular pharmaceutical materials.
